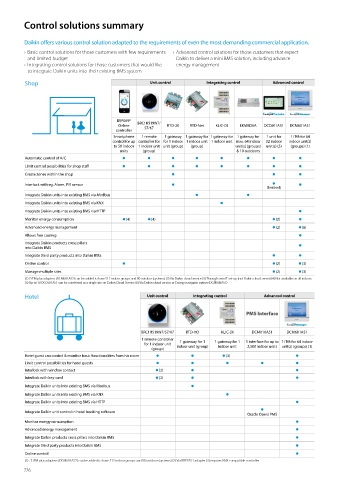

Control solutions summary

Daikin offers various control solution adapted to the requirements of even the most demanding commercial application.

› Basic control solutions for those customers with few requirements › Advanced control solutions for those customers that expect
and limited budget Daikin to deliver a mini BMS solution, including advance
› Integrating control solutions for those customers that would like energy management
to integrate Daikin units into their existing BMS system

Shop Unit control Integrating control Advanced control

Tablet
BRP069* BRC1H519W7/
Online RTD-20 RTD-Net KLIC-DI EKMBDXA DCC601A51 DCM601A51
controller S7/K7
Smartphone 1 remote 1 gateway 1 gateway for 1 gateway for 1 gateway for 1 unit for 1 iTM for 64
control for up controller for for 1 indoor 1 indoor unit 1 indoor unit max. 64 indoor 32 indoor indoor unit(s)
to 50 indoor 1 indoor unit unit (group) (group) unit(s) (groups) unit(s) (5) (groups) (1)
units (group) & 10 outdoors
Automatic control of A/C        
Limit control possibilities for shop staff        
Create zones within the shop   

Interlock with eg. Alarm, PIR sensor  (limited) 
Integrate Daikin units into existing BMS via Modbus  

Integrate Daikin units into existing BMS via KNX
Integrate Daikin units into existing BMS via HTTP 
Monitor energy consumption  (4)  (4)  (2) 
Advanced energy management  (2)  (6)
Allows free cooling 
Integrate Daikin products cross pillars 
into Daikin BMS
Integrate third party products into Daikin BMS  
  
Online control (2) (3)
Manage multiple sites  (2)  (3)
(1) 7 iTM plus adapters (DCM601A52) can be added to have 512 indoor groups and 80 outdoor (systems) (2) Via Daikin cloud service (3) Through own IT set-up (not Daikin cloud server) (4) Not available on all indoors
(5) Up to 10 DCC601A51 can be combined as a single site on Daikin Cloud Service (6) Via Daikin cloud service or Energy navigator option (DCM008A51)
Hotel Unit control Integrating control Advanced control

PMS Interface

BRC1H519W7/S7/K7 RTD-HO KLIC-DI DCM010A51 DCM601A51
1 remote controller 1 gateway for 1 1 gateway for 1 1 interface for up to 1 iTM for 64 indoor
for 1 indoor unit indoor unit (group) indoor unit 2,500 indoor units unit(s) (groups) (1)
(group)
Hotel guest can control & monitor basic functionalities from his room    (3) 
Limit control possibilities for hotel guests     
  
Interlock with window contact (2)
Interlock with key-card  (2)  
Integrate Daikin units into existing BMS via Modbus 
Integrate Daikin units into existing BMS via KNX 
Integrate Daikin units into existing BMS via HTTP 

Integrate Daikin unit control in hotel booking software
Oracle Opera PMS
Monitor energy consumption 
Advanced energy management 

Integrate Daikin products cross pillars into Daikin BMS
Integrate third party products into Daikin BMS 
Online control 
(1) : 7 iTM plus adapters (DCM601A52) can be added to have 512 indoor groups and 80 outdoor (systems) (2) Via BRP7A51 adapter (3) requires KNX compatible controller
