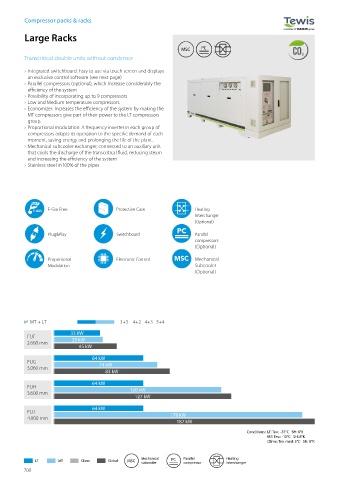

Page 702 - General Catalogue

Compressor packs & racks

Large Racks

MSC PC
Transcritical double units without condenser

› Integrated switchboard. Easy to use via touch screen and displays
an exclusive control software (see next page)
› Parallel compressors (optional), which increase considerably the
efficiency of the system
› Possibility of incorporating up to 9 compressors
› Low and Medium temperature compressors
› Economizer: Increases the efficiency of the system by making the
MT compressors give part of their power to the LT compressors
group.
› Proportional modulation: A frequency inverter in each group of
compressors adapts its operation to the specific demand of each
moment, saving energy and prolonging the life of the plant.
› Mechanical subcooler exchanger, connected to an auxiliary unit
that cools the discharge of the transcritical fluid, reducing steam
and increasing the efficiency of the system
› Stainless steel in 100% of the pipes

F-Gas Free Protective Case Heating
Interchanger
(Optional)

Plug&Play Switchboard Parallel
compressors
(Optional)

Proportional Electronic Control Mechanical
Modulation Subcooler
(Optional)

MT + LT 3+3 4+2 4+3 5+4
33 kW
FUF 35 kW
2.660 mm
45 kW

64 kW
FUG 74 kW
3.060 mm
83 kW
64 kW
FUH 120 kW
3.600 mm
127 kW
64 kW
FUJ 178 kW
4.000 mm
187 kW
Conditions: LT: Tev.: -35°C SH: 8°K
MT: Tev.: -10°C SH: 8°K
Clime: Tev. med: 5°C SH: 8°K

LT MT Clime Global MSC Mechanical PC Parallel Heating
subcooler
compressor
interchanger
