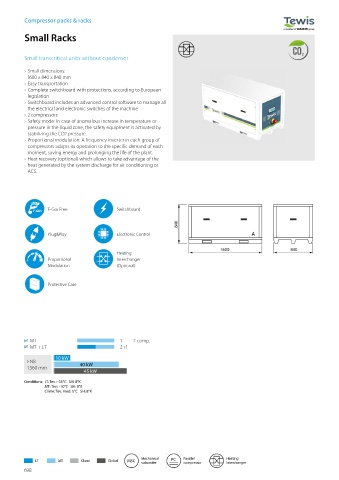

Page 700 - General Catalogue

Compressor packs & racks

Small Racks

Small transcritical units without condenser

› Small dimensions:
1600 x 840 x 840 mm
› Easy transportation
› Complete switchboard with protections, according to European
legislation
› Switchboard includes an advanced control software to manage all
the electrical and electronic switches of the machine
› 2 compressors
› Safety mode: In case of anomalous increase in temperature or
pressure in the liquid zone, the safety equipment is activated by
stabilizing the CO2 pressure.
› Proportional modulation: A frequency inverter in each group of
compressors adapts its operation to the specific demand of each
moment, saving energy and prolonging the life of the plant.
› Heat recovery (optional) which allows to take advantage of the
heat generated by the system discharge for air conditioning or
ACS.

F-Gas Free Switchboard

Plug&Play Electronic Control

Heating
Proportional Interchanger
Modulation (Optional)

Protective Case

MT 1 2 comp.
MT + LT 2+1

10 kW
FNB 40 kW
1.560 mm
45 kW
Conditions: LT: Tev.: -35°C SH: 8°K
MT: Tev.: -10°C SH: 8°K
Clime: Tev. med: 5°C SH: 8°K

LT MT Clime Global MSC Mechanical PC Parallel Heating
compressor
subcooler
interchanger
