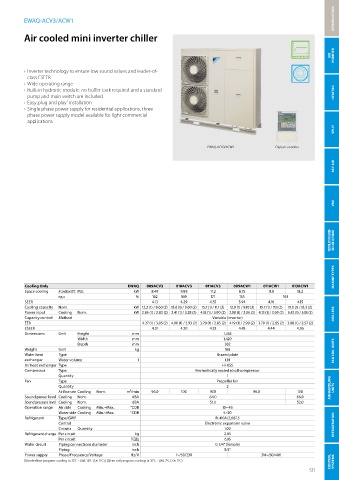

EWAQ-ACV3/ACW1

Air cooled mini inverter chiller

AIR PURIFIER

› Inverter technology to ensure low sound values and leader-of-
class ESEER
› Wide operating range
› Built-in hydronic module: no buffer tank required and a standard HEATING
pump and main switch are included
› Easy ‚plug and play‘ installation
› Single phase power supply for residential applications, three
phase power supply model available for light commercial
applications
SPLIT

EWAQ-ACV3/ACW1 Digital controller

SKY AIR

VRV

VENTILATION & BID- DLE AIR CURTAINS

MARINE TYPES

Cooling Only EWAQ 009ACV3 010ACV3 011ACV3 009ACW1 011ACW1 013ACW1
Space cooling A Condition 35°C Pdc kW 8.49 9.89 11.2 8.75 11.0 13.2
ηs,c % 162 169 171 155 163
SEER 4.13 4.29 4.35 3.94 4.16 4.15
Cooling capacity Nom. kW 12.2 (1) / 8.60 (2) 13.6 (1) / 9.60 (2) 15.7 (1) / 11.1 (2) 12.9 (1) / 9.10 (2) 15.7 (1) / 11.1 (2) 17.0 (1) / 13.3 (2)
Power input Cooling Nom. kW 2.85 (1) / 2.83 (2) 3.41 (1) / 3.28 (2) 4.13 (1) / 3.90 (2) 3.08 (1) / 3.05 (2) 4.13 (1) / 3.90 (2) 5.52 (1) / 5.18 (2) CHILLERS
Capacity control Method Variable (inverter)
EER 4.27 (1) / 3.05 (2) 4.00 (1) / 2.93 (2) 3.79 (1) / 2.85 (2) 4.19 (1) / 2.99 (2) 3.79 (1) / 2.85 (2) 3.08 (1) / 2.57 (2)
ESEER 4.31 4.30 4.33 4.43 4.44 4.36
Dimensions Unit Height mm 1,435
Width mm 1,420
Depth mm 382
Weight Unit kg 168 FAN COIL UNITS
Water heat Type Brazed plate
exchanger Water volume l 1.01
Air heat exchanger Type Hi-XSS
Compressor Type Hermetically sealed scroll compressor
Quantity 1
Fan Type Propeller fan
Quantity 2 AIR HANDLING UNITS
Air flow rate Cooling Nom. m³/min 96.0 100 97.0 96.0 100
Sound power level Cooling Nom. dBA 64.0 66.0
Sound pressure level Cooling Nom. dBA 51.0 52.0
Operation range Air side Cooling Min.~Max. °CDB 10~46
Water side Cooling Min.~Max. °CDB 5~20
Refrigerant Type/GWP R-410A/2,087.5
Control Electronic expansion valve REFRIGERATION
Circuits Quantity 1.00
Refrigerant charge Per circuit kg 2.95
Per circuit TCO2Eq 6.16
Water circuit Piping connections diameter inch G 5/4" (female)
Piping inch 5/4"
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230 3N~/50/400
(1)Underfloor program: cooling Ta 35°C - LWE 18°C (Dt: 5°C) | (2)Fan coil program: cooling Ta 35°C - LWE 7°C ( Dt: 5°C) CONTROL SYSTEMS
