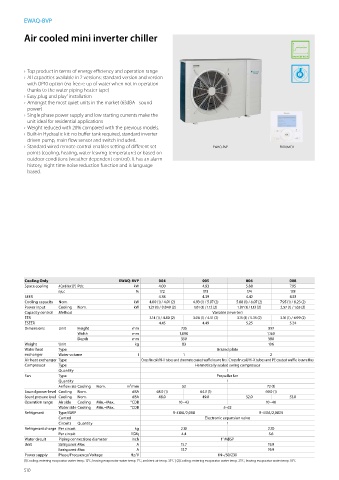

Page 512 - General Catalogue

EWAQ-BVP

Air cooled mini inverter chiller

› Top product in terms of energy efficiency and operation range
› All capacities available in 2 versions: standard version and version
with OP10 option (no freeze up of water when not in operation
thanks to the water piping heater tape)
› Easy ‚plug and play‘ installation
› Amongst the most quiet units in the market (63dBA - sound
power)
› Single phase power supply and low starting currents make the
unit ideal for residential applications
› Weight reduced with 20% compared with the previous models.
› Built-in Hydraulic kit: no buffer tank required, standard inverter
driven pump, main flow sensor and switch included.
› Standard wired remote control enables setting of different set EWAQ-BVP EKRUMCL1
points (cooling, heating, water leaving temperature) or based on
outdoor conditions (weather dependent control). It has an alarm
history, night time noise reduction function and is language
based.

Cooling Only EWAQ-BVP 004 005 006 008
Space cooling A Condition 35°C Pdc kW 4.00 4.93 5.88 7.95
ηs,c % 172 173 174 178
SEER 4.38 4.39 4.42 4.53
Cooling capacity Nom. kW 4.00 (1) / 4.01 (2) 4.93 (1) / 5.07 (2) 5.88 (1) / 6.07 (2) 7.95 (1) / 8.23 (2)
Power input Cooling Nom. kW 1.27 (1) / 0.840 (2) 1.61 (1) / 1.12 (2) 1.87 (1) / 1.13 (2) 2.57 (1) / 1.65 (2)
Capacity control Method Variable (inverter)
EER 3.14 (1) / 4.80 (2) 3.06 (1) / 4.51 (2) 3.15 (1) / 5.35 (2) 3.10 (1) / 4.99 (2)
ESEER 4.45 4.49 5.25 5.24
Dimensions Unit Height mm 735 997
Width mm 1,090 1,160
Depth mm 350 380
Weight Unit kg 83 106
Water heat Type Brazed plate
exchanger Water volume l 1 2
Air heat exchanger Type Cross fin coil/Hi-X tubes and chromate coated waffle louvre fins Cross fin coil/Hi-X tubes and PE coated waffle louvre fins
Compressor Type Hermetically sealed swing compressor
Quantity 1
Fan Type Propeller fan
Quantity 1
Air flow rate Cooling Nom. m³/min 53 72 (1)
Sound power level Cooling Nom. dBA 63.0 (1) 64.0 (1) 69.0 (1)
Sound pressure level Cooling Nom. dBA 48.0 49.0 52.0 53.0
Operation range Air side Cooling Min.~Max. °CDB 10~43 10~46
Water side Cooling Min.~Max. °CDB 5~22
Refrigerant Type/GWP R-410A/2,088 R-410A/2,087.5
Control Electronic expansion valve
Circuits Quantity 1
Refrigerant charge Per circuit kg 2.10 2.70
Per circuit TCO2Eq 4.4 5.6
Water circuit Piping connections diameter inch 1" MBSP
Unit Starting current Max A 15.7 19.9
Running current Max A 15.7 19.9
Power supply Phase/Frequency/Voltage Hz/V 1N~/50/230
(1)Cooling: entering evaporator water temp. 12°C; leaving evaporator water temp. 7°C; ambient air temp. 35°C | (2)Cooling: entering evaporator water temp. 23°C; leaving evaporator water temp. 18°C
