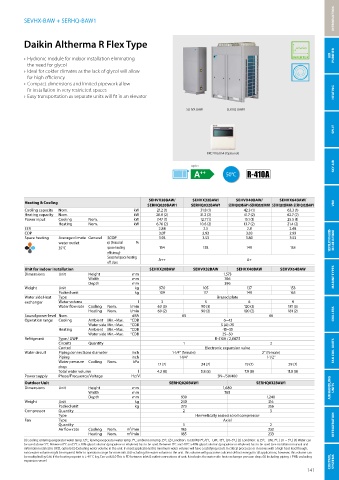

INTRODUCTION

SEVHX-BAW + SERHQ-BAW1

Daikin Altherma R Flex Type

AIR PURIFIER
› Hydronic module for indoor installation eliminating
the need for glycol
› Ideal for colder climates as the lack of glycol will allow
for high efficiency
› Compact dimensions and limited pipework allow
fir installation in very restricted spaces HEATING
› Easy transportation as separate units will fit in an elevator

SEHVX-BAW SERHQ-BAW1

SPLIT

BRC21A53/54 (Optional)
A +++
up to SKY AIR
A ++ 50°C

A +

SEHVX20BAW/ A SEHVX40BAW/ SEHVX64BAW/
SEHVX32BAW/
Heating & Cooling VRV
SERHQ020BAW1 SERHQ032BAW1 SERHQ020BAW1+SERHQ020BAW1 SERHQ032BAW1+SERHQ032BAW1
Cooling capacity Nom. kW 21.2 (1) B 31.8 (1) 42.3 (1) 63.3 (1)
Heating capacity Nom. kW 20.8 (2) 31.2 (2) 41.7 (2) 62.7 (2)
Power input Cooling Nom. kW 7.47 (1) C 12.7 (1) 15.1 (1) 25.5 (1)
Heating Nom. kW 6.76 (2) 10.6 (2) 13.7 (2) 21.4 (2)
EER 2.84 2.5 2.8 2.48
COP 3.07 D 2.93 3.03 2.93
Space heating Average climate General SCOP 3.93 3.53 3.80 3.53
water outlet ηs (Seasonal % VENTILATION & BID- DLE AIR CURTAINS
35°C space heating 154 E 138 149 138
efficiency)
Seasonal space heating F
eff. class A++ A+
SEHVX32BAW
Unit for indoor installation SEHVX20BAW G SEHVX40BAW SEHVX64BAW
Dimensions Unit Height mm 1,573
Width mm 766 MARINE TYPES
Depth mm 396
Weight Unit kg 97.0 105 137 153
Packed unit kg 109 117 149 165
Water side Heat Type Brazed plate
exchanger Water volume l 3 5 6 9
Water flow rate Cooling Nom. l/min 60 (3) 90 (3) 120 (3) 181 (3)
Heating Nom. l/min 60 (2) 90 (2) 120 (2) 181 (2)
Sound power level Nom. dBA 63 66 CHILLERS
Operation range Cooling Ambient Min.~Max. °CDB -5~43
Water side Min.~Max. °CDB 5 (4)~20
Heating Ambient Min.~Max. °CDB -15~35
Water side Min.~Max. °CDB 25~50
Refrigerant Type / GWP R-410A / 2,087.5
Circuits Quantity 1 2
Control Electronic expansion valve
Water circuit Piping connections diameter inch 1-1/4” (female) 2“ (female) FAN COIL UNITS
Piping inch 1-1/4“ 1-1/2“
Water pressure Cooling Nom. kPa 17 (7) 24 (7) 19 (7) 29 (7)
drop
Total water volume l 4.2 (8) 5.8 (8) 7.9 (8) 11.0 (8)
Power supply Phase/Frequency/Voltage Hz/V 3N~/50/400
Outdoor Unit SERHQ020BAW1 SERHQ032BAW1
Dimensions Unit Height mm 1,680 AIR HANDLING UNITS
Width mm 765
Depth mm 930 1,240
Weight Unit kg 240 316
Packed unit kg 273 356
Compressor Quantity 2 3
Type Hermetically sealed scroll compressor
Fan Type Axial
Quantity 1 2 REFRIGERATION
Air flow rate Cooling Nom. m³/min 185 233
Heating Nom. m³/min 185 233
(1) Cooling: entering evaporator water temp. 12°C; leaving evaporator water temp. 7°C; ambient air temp. 35°C (2) Condition: Ta DB/WB 7°C/6°C - LWC 45°C (Dt=5°C) (3) Condition: Ta 35°C - LWE 7°C ( DT = 5°C) (4) Water can
be used above 5°C. Between 0°C and 5°C a 30% glycol solution (propylene or ethylene) has to be used. Between 0°C and -10°C a 40% glycol solution (propylene or ethylene) has to be used (see installation manual and
information related to OPZL option) (5) Excluding water volume in the unit. In most applications this minimum water volume will have a satisfying result. In critical processes or in rooms with a high heat load though,
extra water volume might be required. Refer to operation range for more info. (6) Excluding the water volume in the unit. This volume will guarantee suficient defrost energy for all applications, however, this volume can
be multiplied by 0,66 if the heating sepoint is ≥ 45° C (eg. Fan coils) (7) This is PD between inlet & outlet connections of unit. It includes the water side heat exchanger pressure drop. (8) Including piping + PHE; excluding
expansion vessel CONTROL SYSTEMS
