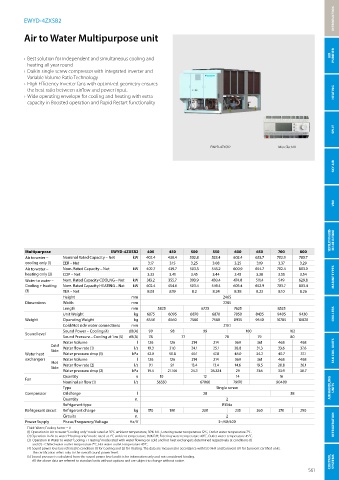

EWYD-4ZXSB2

Air to Water Multipurpose unit

AIR PURIFIER
› Best solution for independent and simultaneous cooling and
heating all year round
› Daikin single screw compressor with integrated inverter and
Variable Volume Ratio Technology
› High Efficiency Inverter fans with optimized geometry ensures
the best ratio between airflow and power input. HEATING
› Wide operating envelope for cooling and heating with extra
capacity in Boosted operation and Rapid Restart functionality

SPLIT

EWYD-4ZXSB2 MicroTech III

SKY AIR

VRV

VENTILATION & BID- DLE AIR CURTAINS

Multipurpose EWYD-4ZXSB2 400 450 500 550 600 650 700 800
Air to water – Nominal Rated Capacity – Net kW 402.4 438.4 502.8 523.4 602.4 653.7 702.9 785.7
cooling only (1) EER – Net 3.17 3.15 3.25 3.08 3.25 3.19 3.37 3.29
Air to water – Nom. Rated Capacity – Net kW 402.7 439.7 503.5 545.2 600.9 654.7 702.4 803.0
heating only (2) COP – Net 3.33 3.41 3.45 3.44 3.45 3.38 3.55 3.54 MARINE TYPES
Water to water – Nom. Rated Capacity COOLNG – Net kW 313.2 355.7 393.9 430.4 474.8 511.4 549 629.8
Cooling + heating Nom. Rated Capacity HEATING – Net kW 402.4 454.6 503.4 549.4 603.4 652.9 703.7 803.4
(3) TER – Net 8.03 8.19 8.2 8.24 8.38 8.23 8.10 8.26
Height mm 2465
Dimensions Width mm 2285
Length mm 5825 6725 7625 8525
Unit Weight kg 6075 6095 6870 6870 7850 8435 9405 9430 CHILLERS
Weight Operating Weight kg 6540 6560 7560 7560 8935 9540 10785 10820
Cold/Hot side water connections mm 219.1
Sound Power – Cooling (4) dB(A) 99 98 99 100 102
Sound level
Sound Pressure – Cooling at 1 m (5) dB(A) 78 77 78 79 80
Water Volume l 126 126 214 214 369 361 468 468
Cold
Side Water flow rate (1) l/s 19.3 21.0 24.1 25.1 28.8 31.3 33.6 37.6 FAN COIL UNITS
Water heat Water pressure drop (1) kPa 42.0 50.8 40.1 47.8 48.0 34.2 40.7 37.1
exchangers Water Volume l 126 126 214 214 369 361 468 468
Hot Water flow rate (2) l/s 9.1 9.1 13.4 13.4 14.6 19.5 20.8 26.1
Side
Water pressure drop (2) kPa 19.4 21.146 24.3 26.334 29 31.6 33.9 38.7
Quantity n 10 12 14 16
Fan
Nominal air flow (1) l/s 56550 67860 79170 90480
Type Single screw AIR HANDLING UNITS
Compressor Oil charge l 28 38
Quantity n. 2
Refrigerant type R134a
Refrigerant circuit Refrigerant charge kg 170 190 200 235 260 270 290
Circuits n. 2
Power Supply Phase/Frequency/Voltage Hz/V 3~/50/400
Fluid: Water; Fouling factor = 0 REFRIGERATION
(1) Operation in Air to water “Cooling only” mode rated at 35°C ambient temperature, 50% R.H.; Entering water temperature 12°C, Outlet water temperature 7°C.
(2) Operation in Air to water “Heating only” mode rated at 7°C ambient temperature, 85% R.H; Entering water temperature 40°C, Outlet water temperature 45°C.
(3) Operation in Water to water “Cooling + Heating” mode rated with water flowing on cold and hot heat exchangers determined respectively at conditions (1)
and (2) - Chilled water outlet temperature 7°C, Hot water outlet temperature 45°C.
(4) Sound power level are referred to condition (1) for Cooling and (2) for Heating. The data are measured in accordance with ISO 9614 and Eurovent 8/1 for Eurovent certified units.
The certification refers only to the overall sound power level.
(5) Sound pressure is calculated from the sound power level and it is for information only and not considered binding.
All the above data are referred to standard units without options and are subject to change without notice. CONTROL SYSTEMS
