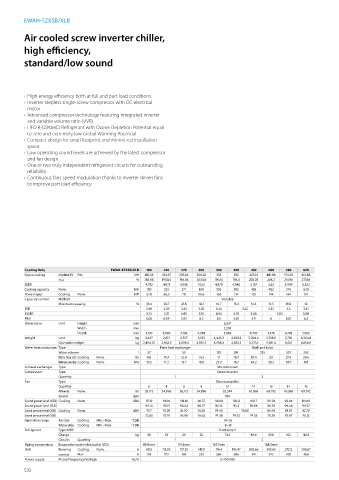

Page 532 - General Catalogue

EWAH-TZXSB/XLB

Air cooled screw inverter chiller,

high efficiency,
standard/low sound

› High energy efficiency both at full and part load conditions
› Inverter stepless single-screw compressor with DC electrical
motor
› Advanced compressor technology featuring integrated inverter
and variable volume ratio (VVR)
› HFO R-1234ze(E) Refrigerant with Ozone Depletion Potential equal
to zero and extremely low Global Warming Potential
› Compact design for small footprint and minimized installation
space
› Low operating sound levels are achieved by the latest compressor
and fan design
› One or two truly independent refrigerant circuits for outstanding
reliability
› Continuous fans speed modulation thanks to inverter driven fans
to improve part load efficiency

Cooling Only EWAH-TZXSB/XLB 180 220 270 300 350 390 430 480 580 620
Space cooling A Condition 35°C Pdc kW 180.38 224.67 270.66 300.22 355 392 427.64 481.86 574.38 619.88
ηs,c % 188.68 195.84 194.04 203.08 196.16 196.4 203.28 206.2 214.96 217.88
SEER 4.792 4.971 4.926 5.152 4.979 4.985 5.157 5.23 5.449 5.522
Cooling capacity Nom. kW 180 225 271 300 355 392 428 482 574 620
Power input Cooling Nom. kW 51.8 66.3 79 89.6 103 114 125 144 164 181
Capacity control Method Variable
Minimum capacity % 33.4 26.7 21.6 18.7 16.7 15.4 14.3 12.5 10.8 10
EER 3.49 3.39 3.43 3.35 3.44 3.42 3.33 3.5 3.41
ESEER 5.14 5.21 4.95 5.16 4.94 4.95 5.06 5.05 5.08
IPLV 6.05 6.09 5.92 6.2 5.8 5.81 5.9 6 6.01 6.2
Dimensions Unit Height mm 2,537
Width mm 2,258
Depth mm 3,183 4,083 3,183 4,083 5,883 6,783 7,776 6,783 7,683
Weight Unit kg 2,447 2,813 2,557 2,923 4,445.2 4,629.2 5,004.6 5,748.6 5,720 6,364.8
Operation weight kg 2,484.35 2,862.5 2,606.5 2,972.5 4,598.2 4,870.2 5,237.6 5,981.6 6,021 6,656.8
Water heat exchanger Type Plate heat exchanger Shell and tube
Water volume l 37 50 153 241 233 301 292
Water flow rate Cooling Nom. l/s 8.6 10.7 12.9 14.3 17 18.7 20.4 23 27.4 29.6
Water pressure drop Cooling Nom. kPa 10.2 11.2 15.7 18.9 23.2 16.7 34.2 26.3 24.7 31.1
Air heat exchanger Type Microchannel
Compressor Type Screw inverter
Quantity 1 2
Fan Type Direct propeller
Quantity 6 8 6 8 12 14 16 14 16
Air flow rate Nom. l/s 26,172 34,896 26,172 34,896 52,344 61,068 69,792 61,068 69,792
Speed rpm 760
Sound power level (XSB) Cooling Nom. dBA 97.19 98.16 101.14 96.57 100.19 100.4 100.7 101.94 99.44 104.19
Sound power level (XLB) 92.14 93.15 96.44 96.57 95.14 95.3 95.68 96.78 99.44 99.57
Sound pressure level (XSB) Cooling Nom. dBA 77.7 78.20 81.70 76.60 79.40 79.60 80.40 78.70 82.70
Sound pressure level (XLB) 72.65 73.19 76.96 76.62 74.36 74.53 74.55 75.29 78.67 78.12
Operation range Air side Cooling Min.~Max. °CDB -18~55
Water side Cooling Min.~Max. °CDB -8~18
Refrigerant Type/GWP R-1234(ze)/7
Charge kg 39 52 39 52 73.2 84.6 97.6 102 116.8
Circuits Quantity 1 2
Piping connections Evaporator water inlet/outlet (OD) 88.9mm 114.3mm 139.7mm 168.3mm
Unit Running Cooling Nom. A 88.5 113.05 131.55 147.5 176.4 193.47 208.66 243.65 272.5 298.67
current Max A 134 173 190 233 266 286 311 372 403 465
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
